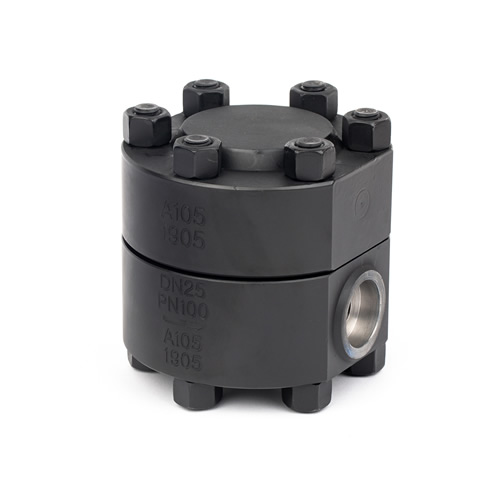

High Temp High Pressure disc type steam trap

Product introduction

1.This type of steam trap is equipped with automatic blow-off mechanism. The new typo crowned valve disc and seal is very reliable. The steam heat protection DEVICE saves the energy in an effective way.
2.When the device starts up, it can drain out the air and condensation water quickly with largo capacity and k)w steam leakage rate.

Send Inquiry


Structure characteristics
1.This type of steam trap is equipped with automatic blow-off mechanism. The new typo crowned valve disc and seal is very reliable. The steam heat protection DEVICE saves the energy in an effective way.
2.When the device starts up, it can drain out the air and condensation water quickly with largo capacity and k)w steam leakage rate.
3.lt is strong in anti-corrosion, reliable in operation and durable in performance.
4 Within the scale of pressure, it will not require for adjustment and has outstanding performance on energy saving.

Main application
It can be applied for saturated steam main pipeline in high temperature and pressure and m critical stat© of steam in turbine.



Features/performance
When the pressure changes, it will not affect the steam thermal insulation, which to prevent air play phenomenon.
The air vent unlocking device with bimetal ring can start up very quickly.
Large size filter screen is installed inside of the valve to achieve no-failure operation. It has long life circle and is easy to maintain.

Main application
It can be applied for saturated steam main pipeline in high temperature and pres sure and in critical state of steam in turbine.
