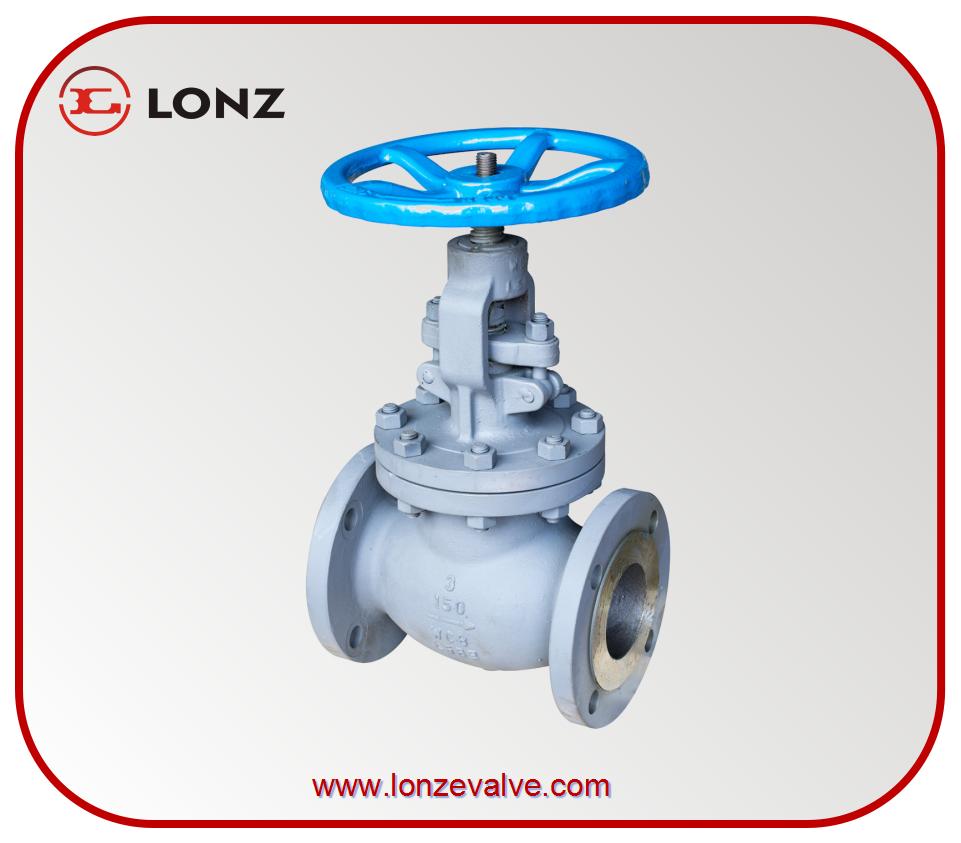

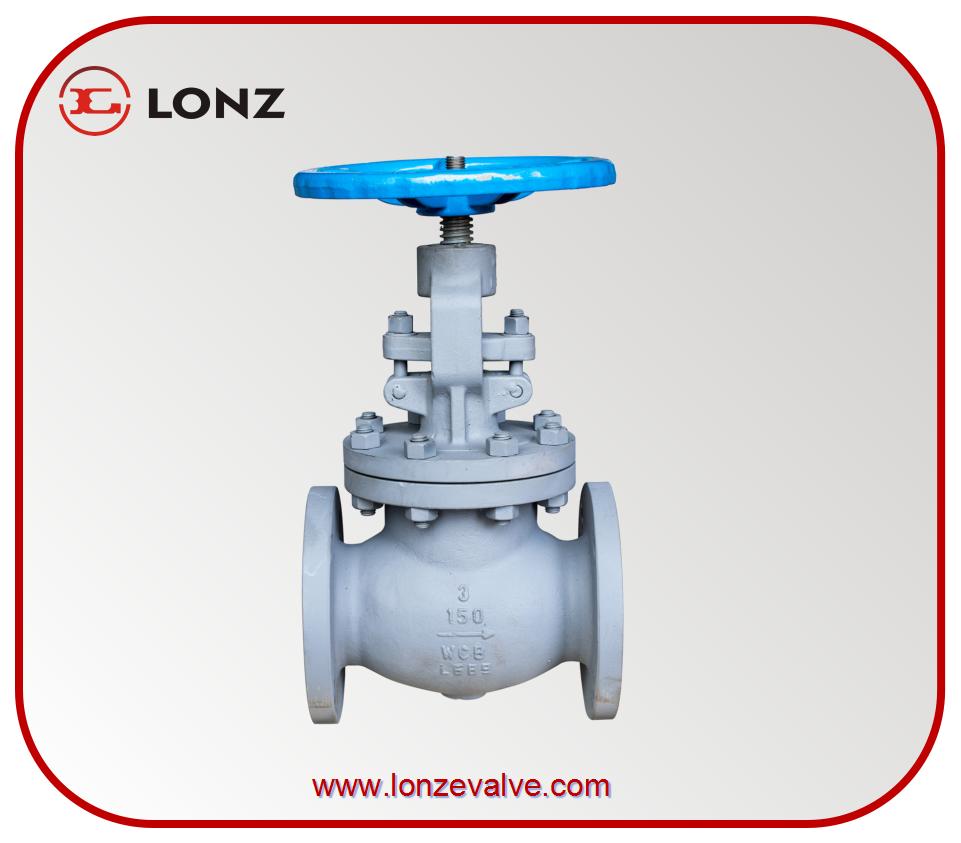

ANSI CARBON STEEL WCB GLOBE VALVES

Product introduction

Bolted Bonnet, Outside Screw & Yoke, Rising Stem, Plug Type Disc

Design and manufacture: API 600 BS1873

Face-to-Face dimension:  ASME B16.10

Flanged End: ASME B16.5

B.W. End: ASME B16.25

Inspection and Test: API598



Send Inquiry

Design and manufacture: API 600 BS1873

Face-to-Face dimension:  ASME B16.10

Flanged End: ASME B16.5

B.W. End: ASME B16.25

Inspection and Test: API598

Temperature and Pressure: ASME B16.34

Shell Wall Thickness:  API 600   BS1873


Parts List

No Parts Material
1 Body ASTM A216 GR. WCB
2 Seat Ring ASTM A105+13CR
3 Disc ASTM A216 GR. A105 +13CR
4 Stem ASTM A182 F6a
5 Gasket SS304+GRAPHIT
6 Bonnet ASTM A216 GR. WCB
7 Stud ASTM A193 GR.B7
8 Nut ASTM A194 GR.2H
9 Backseat ASTM A276 410
10 Packing Graphit
11 Gland bolt ASTM A193 GR.B7
12 Gland nut ASTM A194 GR.2H
13 PIN C.S.
14 Bushing ASTM A276 410
15 Gland ASTM A216 GR. WCB
16 Stem nut Aluminum Bronze
17 Screw C.S.
18 Handwheel Malleable Iron
19 Washer C.S.
20 Nut C.S.
21 Disc Cover ASTM A276 410
22 Washer S.S.



Dimensions&Weights(150LB)



Size

in

2''

2 1/2''

3''

4''

5''

6''

8''

10''

12''

14''

16''

mm

50

65

80

100

125

150

200

250

300

350

400

L (RF)
L1 (BW)

in

8

8.8

9.5

11.5

14

16

19.5

24.5

27.5

31

36

mm

203

216

241

292

356

406

495

622

698

787

914

L2 (RTJ)

in

8.5

9

10

12

14.5

16.5

20

25

28

31.5

36.5

mm

216

229

254

305

369

419

508

635

711

800

927

H (Open)

in

14.69

15.38

16.56

20.25

21.19

22.31

24.63

28

39

51

63.75

mm

373

390

421

515

538

567

626

712

990

1295

1619

Do

in

7.88

9.88

9.88

11.81

11.81

13.75

15.75

17.75

20

24

24

mm

200

250

250

300

300

350

400

450

500

610

610

D

mm

150

180

190

230

255

280

345

405

485

535

595

D1

mm

120.7

139.7

152.4

190.5

215.9

241.3

298.5

362

431.8

476.3

539.8

D2

mm

92.1

104.8

127

157.2

185.7

215.9

269.9

323.8

381

412.8

469.9

b

mm

17.5

20.7

22.3

22.3

22.3

23.9

27

28.6

30.2

33.4

35

f

mm

2

2

2

2

2

2

2

2

2

2

2

N- Φd

4-Φ19

4-Φ19

4-Φ19

8-Φ19

8-Φ22

8-Φ22

8-Φ22

12-Φ25.4

12-Φ25.4

12-Φ28.5

16-Φ28.5

WT (KG) RF

16

21

28

46

71

81

140

267

362

634

747











































Dimensions&Weights(300LB)

Size

in

2''

2 1/2''

3''

4''

5''

6''

8''

10''

12''

14''

16''

mm

50

65

80

100

125

150

200

250

300

350

400

L (RF)

in

10.5

11.5

12.5

14

15.75

17.5

22

24.5

28

33

34

mm

267

292

318

356

400

444

559

622

711

838

864

L2 (RTJ)

in

11.12

12.12

13.12

14.62

16.37

18.12

22.62

25.12

28.62

33.62

34.62

mm

283

308

334

372

416

460

575

638

727

854

879

H (Open)

in

15.69

17.13

18.19

22.06

24.38

27.31

38.63

44.5

41.31

61.25

67

mm

398

436

462

560

620

694

982

1130

1049

1556

1700

Do

in

7.88

9.88

9.88

13.75

15.75

17.75

22.06

34

24

24

24

mm

200

250

250

350

400

450

560

860

610

610

610

D

mm

165

190

210

255

280

320

380

445

520

585

650

D1

mm

127

149.2

168.3

200

235

269.9

330.2

387.4

450.8

514.4

571.5

D2

mm

92.1

104.8

127

157.2

185.7

215.9

269.9

323.8

381

412.8

469.9

b

mm

20.7

23.9

27

30.2

33.4

35

39.7

46.1

49.3

52.4

55.6

f

mm

2

2

2

2

2

2

2

2

2

2

2

N- Φd

8-Φ19

8-Φ22

8-Φ22

8-Φ22

8-Φ22

12-Φ22

12-Φ25.4

16-Φ28.5

16-Φ32

20-Φ32

20-Φ35

WT (KG) RF

21.5

30

44

63

96

123

233

318

470

638

-







Dimensions&Weights(600LB)



Size

in

2''

2 1/2''

3''

4''

5‘’

6''

8''

10''

12''

14''

16''

mm

50

65

80

100

125

150

200

250

300

350

400

L (RF)

in

11.5

13

14

17

-

22

26

31

33

35

39

mm

292

330

356

432

-

559

660

787

838

889

991

L2 (RTJ)

in

11.62

13.12

14.12

17.12

-

22.12

26.12

31.12

33.12

35.12

39.12

mm

295

333

359

435

-

562

663

790

841

892

994

H (Open)

in

16.75

19.75

20.5

24.38

-

34.88

36.69

41

50.38

70.88

76

mm

425

502

521

620

-

886

932

1040

1280

1800

1930

Do

in

9.88

11.81

13.75

17.75

-

28.38

18.13

24

30

30

30

mm

250

300

350

450

720

460

610

760

760

760

D

mm

165

190

210

275

-

355

420

510

560

605

685

D1

mm

127

149.2

168.3

215.9

-

292.1

349.2

431.8

489

527

603.2

D2

mm

92.1

104.8

127

157.2

-

215.9

269.9

323.8

381

412.8

469.9

b

mm

25.4

28.6

31.8

38.1

-

47.7

55.6

63.5

66.7

69.9

76.2

f

mm

7

7

7

7

-

7

7

7

7

7

7

N- Φd

8-Φ19

8-Φ22

8-Φ22

8-Φ25.4

-

12-Φ29

12-Φ32

16-Φ35

20-Φ35

20-Φ38

20-Φ41

WT (KG) RF

31.6

-

64

110

-

241.3

411.3

-

-

-

-



GLOBE VALVE 150LB RF

Performance Specification

Test
Pressure

Shell Test

3

Mpa

Back Seal Test

2.2

Seal Test

2.2

Air Test

0.6

Working Temp

-25~425°C

Media: Water, oil & gas



GLOBE VALVE 300LB RF

Performance Specification

Test
Pressure

Shell Test

7.5

Mpa

Back Seal Test

5.5

Seal Test

5.5

Air Test

0.6

Working Temp

-25~425°C

Media: Water, oil & gas



GLOBE VALVE 600LB RF

Performance Specification

Test
Pressure

Shell Test

15

Mpa

Back Seal Test

11

Seal Test

11

Air Test

0.6

Working Temp

-25~425°C

Media: Water, oil & gas
