BALL FLOAT STEAM TRAP, DOUBLE SEAT, FLANGE END FT44

The FT44 is a ball float steam trap with integral air venting facility.

It is available with horizontal flange connections.


Send Inquiry

Structure characteristics

1 .This type d steam trap is applied with balanced double seat or single seat with reliable closedown and long life circle.1. This type of steam trap is applied with balanced single seat with reliable closedown and long service life.
2. There has always been high temperatue condensation with water upstream, which will form reliable water seal without any leakge of steam
3. Its operation will not cause any noise. Thus, it is preferable to the environment.
4. The valve is completely open when the steam firstly comes. The low temperature condensation water and air can be discharged repadily, which largely shortens the startup time of equipment.
5. All the internal parts are made of stainless steel, which is resistant to corrosion and caviation erosion.

Standards

1. Basic Design: GB/T22654-2008

2. Face to Face Dimensions: GB/T12250-2005

3. Test Std: GB/T12251-2005

4. End Dimensions:      Flange DIN 2545   /  Flange ASME B 16.5

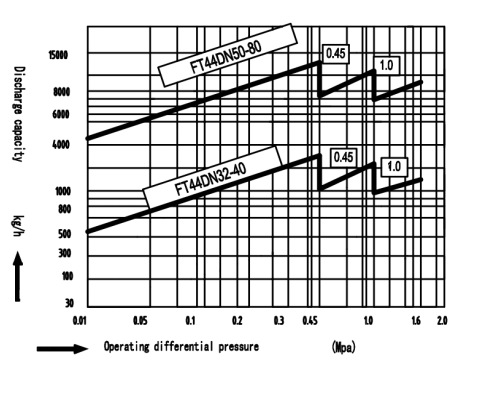

Dimensions & Weights

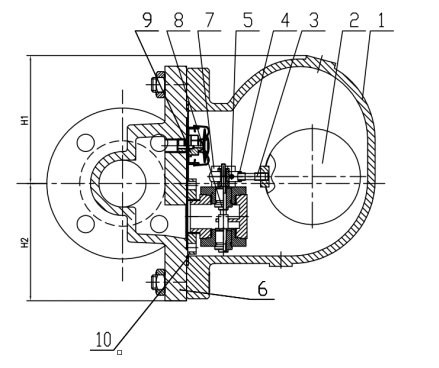

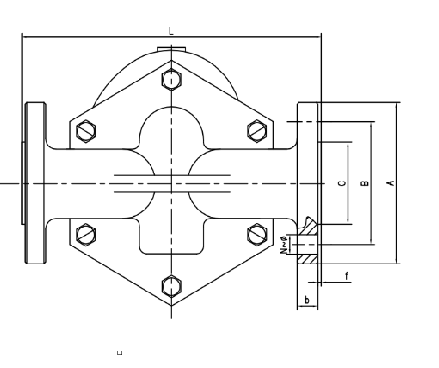

Size NPS CLASS L H1 H2 A B C b f N-Φ Net. Weight
DN32 1 1/4'' PN16 230 130 125 140 100 78 18 2 4-Φ18 26 KGS
DN40 1 1/2'' PN16 230 130 125 150 110 88 18 3 4-Φ18 27 KGS
DN50 2'' PN16 230 130 125 165 125 102 18 3 4-Φ18 28 KGS

Size NPS CLASS L H1 H2 A B C b f N-Φ Net. Weight
DN32 1 1/4'' PN40 230 130 125 140 100 78 18 2 4-Φ18 26 KGS
DN40 1 1/2'' PN40 230 130 125 150 110 88 18 3 4-Φ18 27 KGS
DN50 2'' PN40 230 130 125 165 125 102 20 3 4-Φ18 28 KGS

Size NPS CLASS L H1 H2 A B C b f N-Φ Net. Weight
DN32 1 1/4'' 150LB 230 130 125 115 88.9 63.5 14.3 2 4-Φ16 26 KGS
DN40 1 1/2'' 150LB 230 130 125 125 98.4 73 15.9 2 4-Φ16 27 KGS
DN50 2'' 150LB 230 130 125 150 120.7 92.1 17.5 2 4-Φ19 28 KGS

Size NPS CLASS L H1 H2 A B C b f N-Φ Net. Weight
DN32 1 1/4'' 300LB 230 130 125 135 98.4 63.5 17.5 2 4-Φ19 26 KGS
DN40 1 1/2'' 300LB 230 130 125 155 114.3 73 19.1 2 4-Φ22 27 KGS
DN50 2'' 300LB 230 130 125 165 127 92.1 20.7 2 8-Φ19 28 KGS
