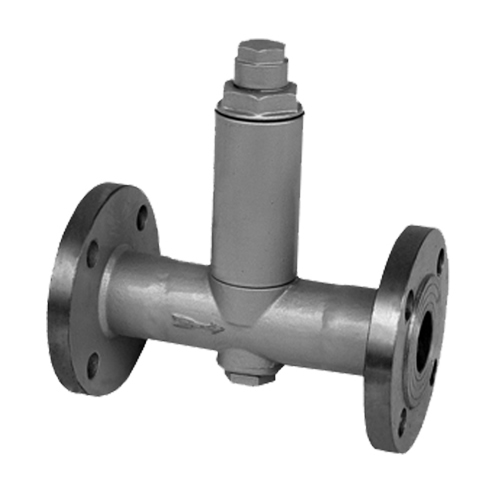

Bellow Type Steam Trap

Product introduction

1. Metal bellow elastic cells can be sell-adjusted between 65 and 110. Discharge capacity can also be manually adjusted.
2.It can exhaust air automatically without any block. Fluctuation of pressure will not affect the normal operation of steam trap.

Send Inquiry


Structure characteristics
1. Metal bellow elastic cells can be sell-adjusted between 65 and 110. Discharge capacity can also be manually adjusted.
2.It can exhaust air automatically without any block. Fluctuation of pressure will not affect the normal operation of steam trap.
3.AII the internal parts are made of stainless steel, with strong anticorrosion and long life service life.
4.II has several types, such as straight type, angle type. Its connection type can be flange. SW. NPT. With small size and convenient installation, it can be installed in any angle.

Main application
steam trap is widely applied in the heating equipment. By taking full advantages of thermal energy, it can be especially applicable for steam thermal pipeline.
