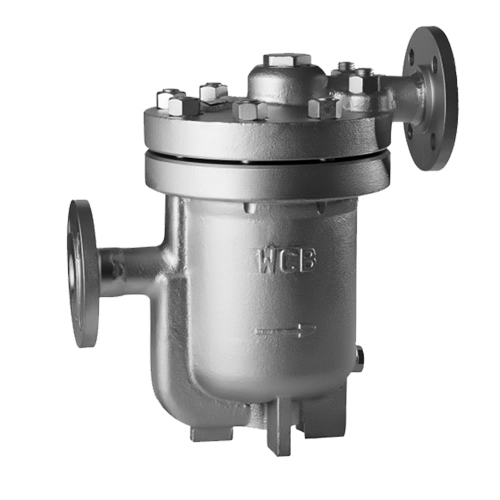

Bell Shape Float(inverse bucket)type steam trap

Product introduction

1.lt is weII adapted to the amount ol condensation water, which can discharge water successively or continuously.
2.lt is equipped with double seat differential pressure mechanism and SCCV closing system with small size and large capacity.

Send Inquiry


Structure characteristics
1.lt is weII adapted to the amount ol condensation water, which can discharge water successively or continuously.
2.lt is equipped with double seat differential pressure mechanism and SCCV closing system with small size and large capacity.
3.AII the installation parts are made of stainless steel and are installed in the bonnet which is convenient for installation and maintenance.
4.Its rate of back pressure is very high with 90%.
5.lt Is reliable to separate the steam and water, The water and steam goes into tho valve bottom through the type channel. The internal valve is under the water sealed status, which can prevent the leakage of steam.
6.The open typo float is resistant to water hammer .There is overflowing air vent in the bucket, which can prevent the situations such as vapor lock and air block.
7.lt can also combine wrth level mechanism to form high pressure valve.



Structure characteristics
1.lt is well adapted to the amount of condensation water, which can discharge water successively or continuously.
2.lt is equipped with double seat differential pressure mechanism and SCCV closing system with small size and large capacity.
3.AII the internal parts are made of stainless steel and are installed in the bonnet, which i s convenient for installation and maintenance.
4.Its rate of back pressure is very high with 90%.
5.lt is reliable to separate the steam and water. The water and steam goes into the valve bottom through the 'U4 type channel. The internal valve is under the water seated status, which can prevent the leakage of steam.
6.Tho open type float ts resistant Io water hammer. There is overflowing air vent in the bucket, which can prevent the situations such as vapor lock and air block.

SCCV closing system Is Self-centering, automatic closed system. The closing mod© breaks through th© traditional design, It ingeniously takes the advantage of the attravtion of condensation water circulating and the pressure in the valve body to close the valve.lt plays a part in buffering and reduces abrasion between valve vore and valve seat

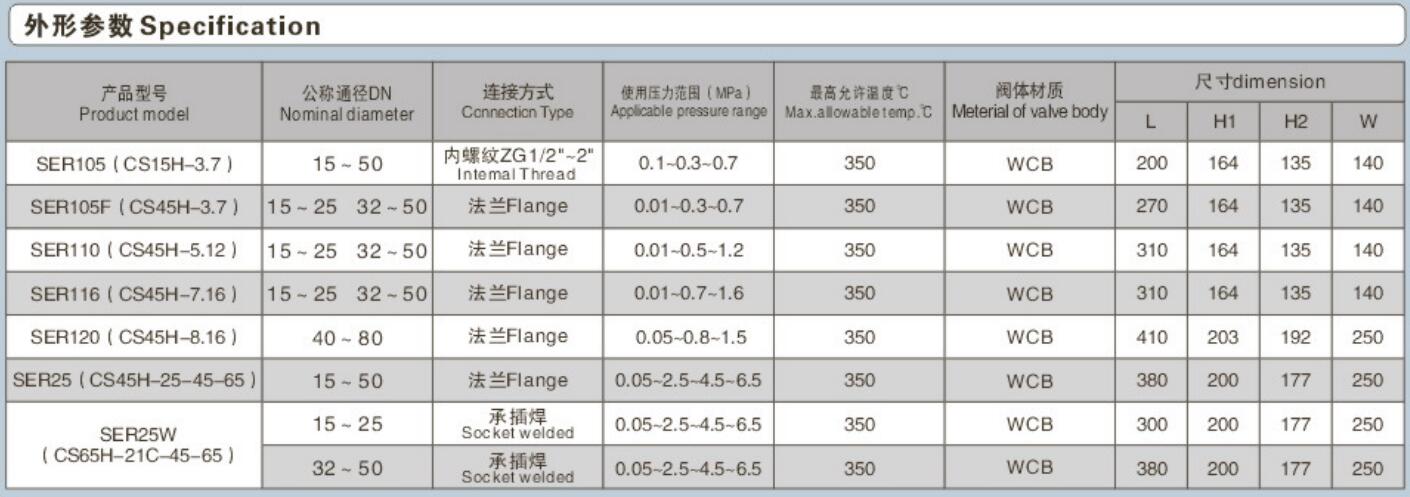

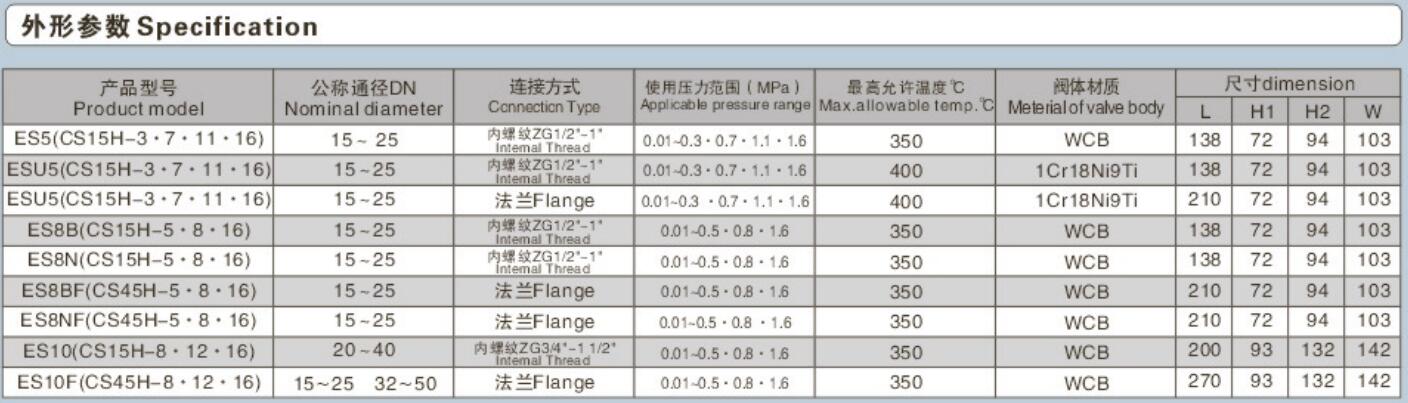

Specification
