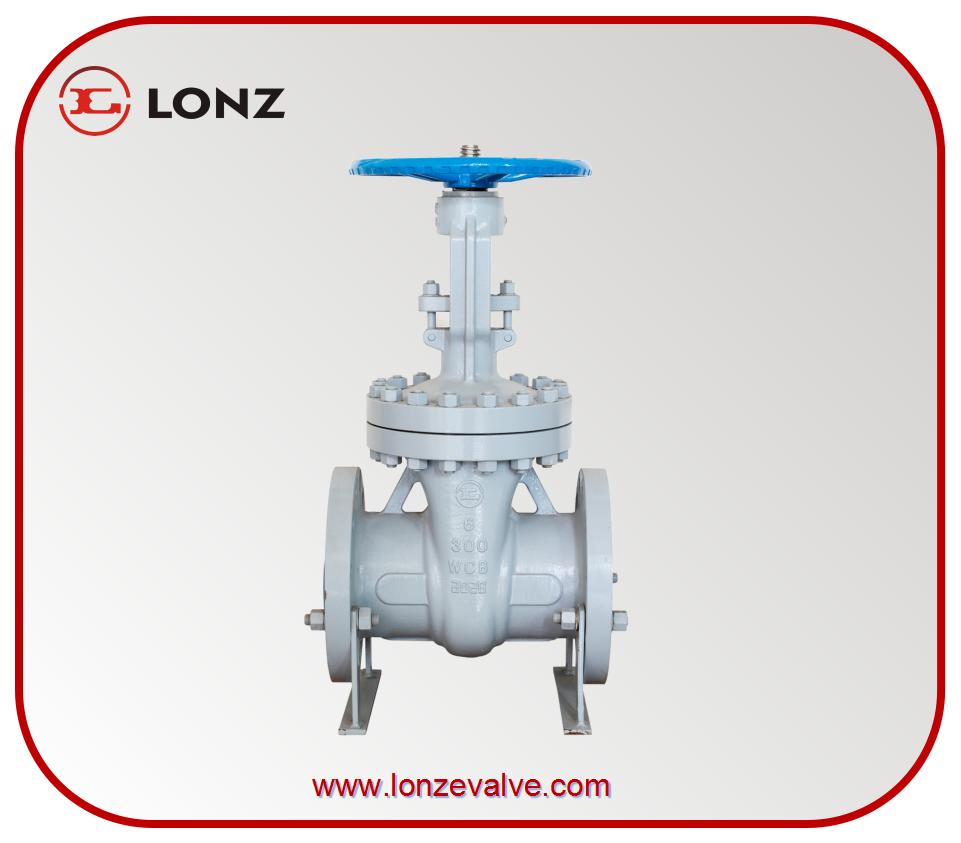

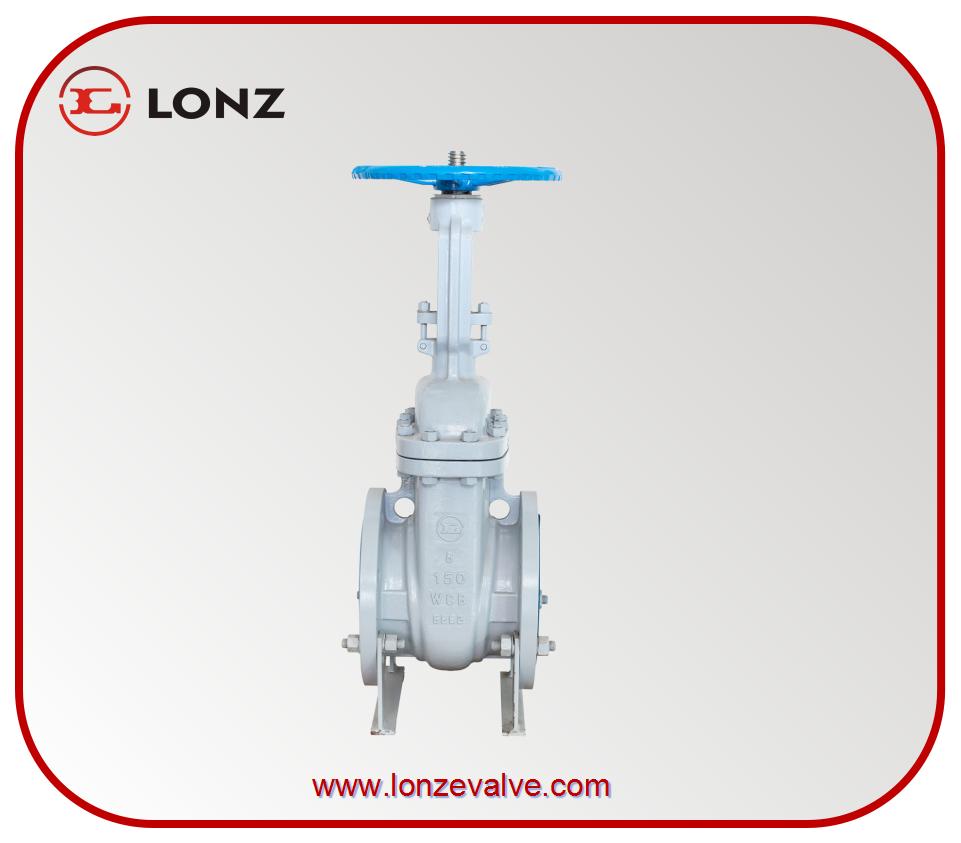

API CARBON STEEL WCB FLANGED GATE VALVES

Product introduction

Bolted Bonnet, Outside Screw & Yoke, Rising Stem, Flexible Wedge

Design and manufacture: API 600 API 603

Face-to-Face dimension: ASME B16.10,

Flanged End: ASME B16.5

Inspection and Test: API598

Send Inquiry

Design and manufacture: API 600 API 603

Face-to-Face dimension: 36"and smaller to ASME B16.10, 40"and larger to manufacturer's standard

Flanged End: 24'' and smaller to ASME B16.5 26'' and larger to ASME B16.47 series A

B.W. End: ASME B16.25

Inspection and Test: API598

Temperature and Pressure: ASME B16.34

Shell Wall Thickness: 24'' and smaller to API 600

26''and larger to manufacturer's standard

8''and smaller valves have a one-piece bonnet and yoke design

10'' and larger valves have a split bonnet and yoke design.




Dimensions & Weights(150LB)

Size

in

2''

2 1/2''

3''

4''

5''

6''

8''

10''

12''

14''

16''

18''

20''

24''

mm

50

65

80

100

125

150

200

250

300

350

400

450

500

600

L (RF)

in

7

7.5

8

9

10

10.5

11.5

13

14

15

16

17

18

20

mm

178

190

203

229

254

267

292

330

356

381

406

432

457

508

L1 (BW)

in

8.5

9.5

11.13

12

15

15.88

16.5

18

19.75

22.5

24

26

28

32

mm

216

241

283

305

381

403

419

457

502

572

610

660

711

813

L2 (RTJ)

in

7.5

8

8.5

9.5

10.5

11

12

13.5

14.5

15.5

16.5

17.5

18.5

20.5

mm

191

203

216

242

267

279

305

343

368

394

419

445

470

521

H (Open)

in

16.13

18.56

20.94

24.13

27.94

31.75

39

46.69

55.31

63.56

71.31

78.19

87

106.25

mm

409

472

532

612

710

806

990

1186

1405

1615

1811

1986

2210

2698

Do

in

7.86

7.86

9.86

9.86

11.81

11.81

13.75

17.69

19.69

18.13

18.13

18.13

24

24

mm

200

200

250

250

300

300

350

450

500

460

460

460

610

610

D

mm

150

180

190

230

255

280

345

405

485

535

595

635

700

815

D1

mm

120.7

139.7

152.4

190.5

215.9

241.3

298.5

362

431.8

476.3

539.8

577.9

635

749.3

D2

mm

92.1

104.8

127

157.2

185.7

215.9

269.9

323.8

381

412.8

469.9

533.4

584.2

692.2

b

mm

17.5

20.7

22.3

22.3

22.3

23.9

27

28.6

30.2

33.4

35

38.1

41.3

46.1

f

mm

2

2

2

2

2

2

2

2

2

2

2

2

2

2

N- Φd

4-Φ19

4-Φ19

4-Φ19

8-Φ19

8-Φ22

8-Φ22

8-Φ22

12-Φ25.4

12-Φ25.4

12-Φ28.5

16-Φ28.5

16-Φ32

20-Φ32

20-Φ35

Dimensions & Weights(300LB)

Size

in

2''

2 1/2''

3''

4''

5''

6''

8''

10''

12''

14''

16''

18''

20''

24''

mm

50

65

80

100

125

150

200

250

300

350

400

450

500

600

L (RF)

in

8.8

9.5

11.12

12

15

15.88

16.5

18

19.75

30

33

36

39

45

mm

216

241

283

305

381

403

419

457

502

762

838

914

991

1143

L2 (RTJ)

in

9.12

10.12

11.74

12.62

15.62

16.5

17.12

18.62

20.37

30.62

33.62

36.62

39.75

45.88

mm

232

257

298

321

397

419

435

473

518

778

854

930

1010

1165

H (Open)

in

15.75

18.75

21.38

25.63

30.31

34.63

40.81

50.19

56.63

65

72.44

79.94

88.19

114.19

mm

400

477

543

650

770

880

1037

1275

1438

1650

1840

2030

2240

2900

Do

in

7.88

9.88

9.88

11.81

11.81

13.75

17.69

19.69

22.06

18.13

18.13

24

24

24

mm

200

250

250

300

300

350

450

500

560

460

460

610

610

610

D

mm

165

190

210

255

280

320

380

445

520

585

650

710

775

915

D1

mm

127

149.2

168.3

200

235

269.9

330.2

387.4

450.8

514.4

571.5

628.6

685.8

812.8

D2

mm

92.1

104.8

127

157.2

185.7

215.9

269.9

323.8

381

412.8

469.9

533.4

584.2

692.2

b

mm

20.7

23.9

27

30.2

33.4

35

39.7

46.1

49.3

52.4

55.6

58.8

62

68.3

f

mm

2

2

2

2

2

2

2

2

2

2

2

2

2

2

N- Φd

8-Φ19

8-Φ22

8-Φ22

8-Φ22

8-Φ22

12-Φ22

12-Φ25.4

16-Φ28.5

16-Φ32

20-Φ32

20-Φ35

24-Φ35

24-Φ35

24-Φ41

WT (KG) RF

23

31

44.4

66

95

121.3

198.9

316

429

685G.

945G.

1174G

1503.5

-


Dimensions & Weights(600LB)

Size

in

2''

2 1/2''

3''

4''

5''

6''

8''

10''

12''

14''

16''

18''

20''

24''

mm

50

65

80

100

125

150

200

250

300

350

400

450

500

600

L (RF)

in

11.5

13

14

17

20

22

26

31

33

35

39

43

47

55

mm

292

330

356

432

508

559

660

787

838

889

991

1092

1194

1397

L2 (RTJ)

in

11.62

13.12

14.12

17.12

20.12

22.12

26.12

31.12

33.12

35.12

39.12

43.12

47.25

55.38

mm

295

333

359

435

511

562

663

790

841

892

994

1095

1200

1407

H (Open)

in

18.63

21.75

23.38

28.06

30.3

38.19

44.19

52.38

59.81

68.13

72.75

90.13

98.81

119.00

mm

474

553

593

713

770

970

1122

1330

1519

1730

1835

2290

2510

3022

Do

in

9.88

9.88

11.81

13.75

15.7

19.69

22.06

28.38

24

24

24

24

30

30

mm

250

250

300

350

400

500

560

720

610

610

610

610

760

760

D

mm

165

190

210

275

330

355

420

510

560

605

685

745

815

940

D1

mm

127

149.2

168.3

215.9

266.7

292.1

349.2

431.8

489

527

603.2

654

723.9

838.2

D2

mm

92.1

104.8

127

157.2

185.7

215.9

269.9

323.8

381

412.8

469.9

533.4

584.2

692.2

b

mm

25.4

28.6

31.8

38.1

44.5

47.7

55.6

63.5

66.7

69.9

76.2

82.6

88.9

101.6

f

mm

7

7

7

7

7

7

7

7

7

7

7

7

7

7

N- Φd

8-Φ19

8-Φ22

8-Φ22

8-Φ25.4

12-Φ28.5

12-Φ29

12-Φ32

16-Φ35

20-Φ35

20-Φ38

20-Φ41

24-Φ44.4

24-Φ44.4

24-Φ51

WT (KG) RF

30

-

56.8

102

-

209.2

357

661

938G

-

-

-

-

-

GATE VALVE 150LB RF

Performance Specification

Test
Pressure

Inentsity  Test

3

Mpa



Back Seal Test

2.2





Seal Test

2.2





Air Test

0.6



Working Temp

-25~425°C

Media: Water, oil & gas



GATE VALVE 300LB RF

Performance Specification

Test
Pressure

Inentsity  Test

7.5

Mpa



Back Seal Test

5.5





Seal Test

5.5





Air Test

0.6



Working Temp

-25~425°C

Media: Water, oil & gas


GATE VALVE 600LB RF

Performance Specification

Test
Pressure

Inentsity  Test

15

Mpa

Back Seal Test

11

Seal Test

11

Air Test

0.6

Working Temp

-25~425°C

Media: Water, oil & gas
